Chain Link Fence and Gates - Houston, TX

Chain link with a properly built and matched gate is one of the most durable, cost-effective fencing systems in Houston, TX. The gate is where most chain link installations succeed or fail — and where Griffin Fence's 47 years of Houston experience makes the difference.

Since 1979 | 25K+ Customers | ★ 4.9 Rating | Free Estimates | 1-Yr Warranty
Quick Answer: Griffin Fence installs chain link fencing with matched swing, slide, and cantilever gates for residential and commercial properties in Houston, TX. Walk gates, driveway gates, and automation-ready commercial gates — free estimates, 1-year workmanship warranty, serving Houston since 1979.

Chain Link Gates Built for Houston's Demands

The most common chain link failure point is the gate. Undersized frames sag. Cheap hinges wear out within a few years in Houston's humidity. Die-cast zinc hardware corrodes faster than galvanized malleable iron. A gate that does not close squarely or latch reliably is not just annoying — it defeats the purpose of the fence.

47+ Years Experience
25K+ Customers Served
1-yr Workmanship Warranty

Griffin Fence uses galvanized or powder-coated malleable iron hardware on all chain link gate installations — not die-cast zinc. We size gate posts to handle the gate load: 1-5/8 inch line posts work for line fence, but gate posts carrying swinging gates need 2 inch or 2-1/2 inch pipe to resist the torque over time.

Walk gates, single driveway gates, double swing gates, slide gates, and cantilever gates — Griffin Fence fabricates and installs all of them in Houston, TX, from residential walk gates to wide commercial vehicle entries. Every gate is built to match the fence in height, finish, and material.

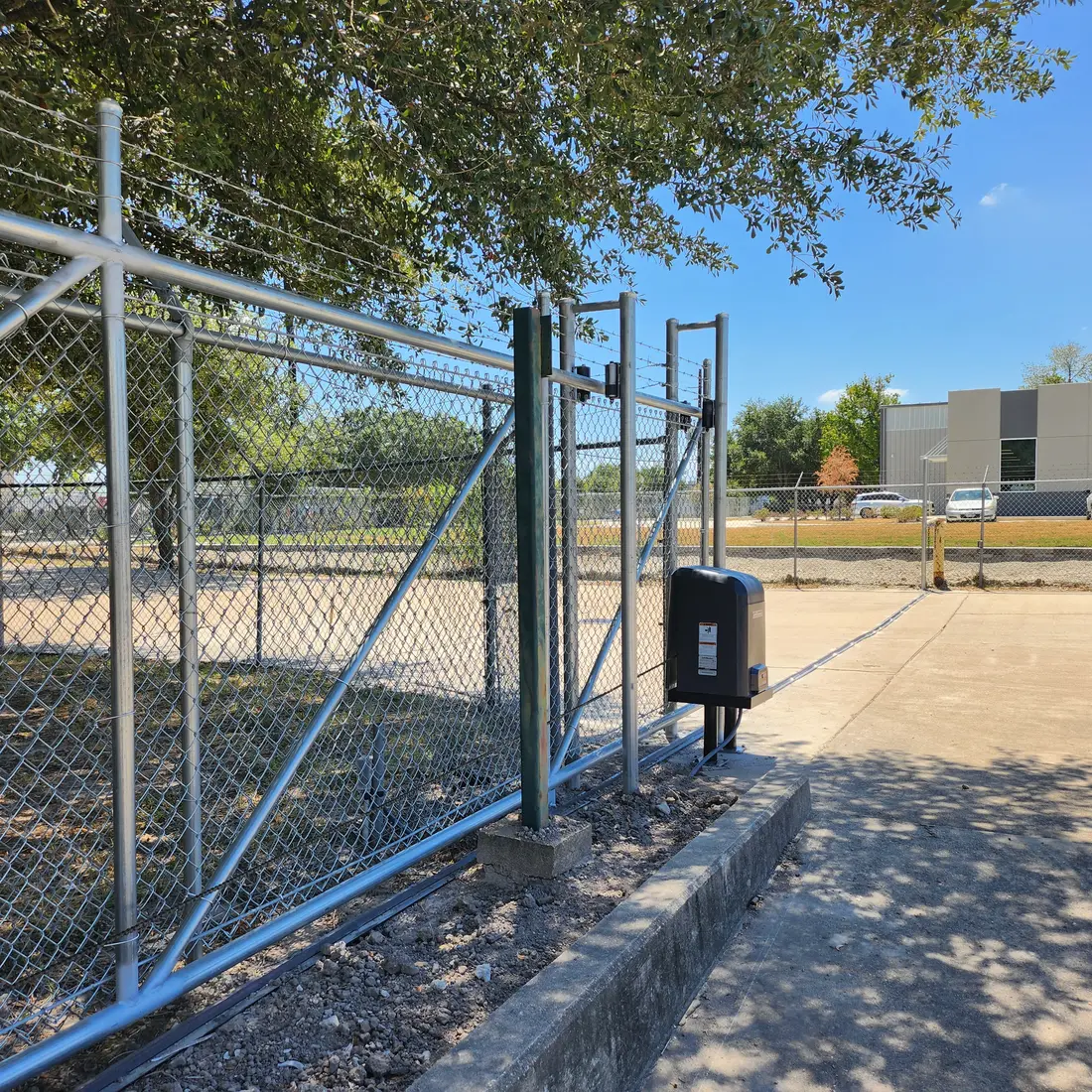

Chain link fence and gate installation Houston TX by Griffin Fence
Gate types

Chain Link Gate Types Griffin Fence Installs

Every gate type has a right application. Here is how the main types differ and where each fits in Houston, TX.

Walk Gates

Single-swing pedestrian gates in 3, 4, or 5 foot widths. 1-3/8 inch frame for standard walk gates. Spring closer and fork latch standard. Common for side yards and pool areas.

Single Swing Driveway Gates

Up to 16 feet wide. 1-5/8 inch frame, 2 inch gate posts minimum. Swing gates require clear space for the swing arc — confirm before ordering.

Double Swing Gates

Two leaves meeting in the center for openings up to 24 feet. Standard for residential driveways wider than 12 feet and commercial vehicle entries with adequate swing clearance.

Slide Gates

Roll on a bottom track parallel to the fence line. For openings where swing clearance is not available. Ground track must be kept clear of debris. 2 inch gate posts standard.

Cantilever Slide Gates

No ground track — slides on roller carriers mounted to posts. Best for sloped driveways, wide commercial openings, and automation. 3 inch posts for spans over 24 feet.

Automation-Ready Framing

Gates framed and posted to the structural spec of the planned operator. Slide and cantilever gates are easiest to automate; swing gates require the right operator selection and frame weight.

Our process

How a Chain Link Gate Project Works

1

Free Estimate

We measure the opening, discuss gate type and automation plans, and confirm post sizing and hardware requirements before quoting.

2

Permit and HOA Check

Residential under 8 feet typically does not require a permit. Commercial does. We confirm before fabrication begins.

3

Fabrication and Install

Gate framed, posts set in concrete at the correct depth, gate hung square, hardware fitted and tested through full operation cycle.

4

Walk-Through and Warranty

Full gate operation test, latch adjustment if needed, and 1-year workmanship warranty coverage on every Griffin Fence installation.

Chain link gate installation Griffin Fence Houston

Hardware Quality Determines Gate Life

Houston's humidity is rough on metal hardware. A gate installed with die-cast zinc hinges and latches will show corrosion and function problems within 3 to 5 years. Galvanized malleable iron hardware lasts decades in the same conditions. It costs more per unit but far less over the life of the gate.

Gate posts are the other critical spec. A line post handles wind load on fence fabric — a gate post handles that plus the torque of a swinging gate loaded by wind. Undersizing gate posts is the fastest route to a sagging gate that will never close square again without significant work.

The standard Griffin Fence residential driveway gate post is 2 inch Schedule 40 pipe set in concrete at 36 to 42 inches depth. Commercial driveway gate posts run 2-1/2 to 3 inch pipe. Cantilever gate posts for spans over 24 feet use 3 inch pipe as a minimum. These specs are not flexible — the loads are known and the post must match them.

If you need a gate replacement without replacing the whole fence, call us. We fabricate custom replacement gates, match the existing finish, and rehang them with correct post reinforcement when the existing post can be salvaged.

For more information, visit our driveway gate installation Houston, TX page.

Chain link fence and gate Houston TX installation Chain link driveway gate installed by Griffin Fence
Common questions

Chain Link Fence and Gate FAQs

How wide can a chain link driveway gate be?
A single swing gate can span up to about 16 feet before sagging becomes a structural concern with standard hardware. For wider openings, a double swing gate works up to about 24 feet total. Slide or cantilever gates handle openings of 30 feet and wider. Griffin Fence recommends cantilever for sloped driveways and openings where a ground track would create drainage or clearance issues.
Can a chain link gate be automated?
Yes. Slide and cantilever gates are the easiest to automate with electric operators and work well with keypad, card reader, or intercom access control. Swing gates can also be automated with the right operator selection. Griffin Fence frames gates to the structural requirements of the automation system when automation is planned at install time — adding automation to an undersized gate later usually requires frame replacement.
What is a cantilever gate?
A cantilever gate slides laterally on roller carriers mounted to posts on one side of the opening. There is no ground track — the gate is counterbalanced and supported entirely by the roller system. Cantilever gates are the preferred choice for sloped driveways and wide commercial openings in Houston because they do not require a level ground surface to operate correctly.
How long does a chain link gate last?
A properly framed chain link gate with galvanized or powder-coated steel frame, quality malleable iron hardware, and correct post sizing can last 20 to 30 years. Gate hardware — hinges, latches, and rollers — typically needs service before the frame or fabric does. Galvanized malleable iron hardware significantly outlasts die-cast zinc in Houston's humidity.
Do I need a permit for a chain link gate in Houston, TX?
Residential chain link fencing and gates under 8 feet in Houston city limits do not require a building permit. Commercial fencing and gates require a permit at any height. HOA communities require architectural review approval separately from any city permit requirement. Griffin Fence confirms all requirements before fabrication begins.

Ready to Install a Chain Link Gate That Works?

Call 713-937-6611 or request a free estimate online. Griffin Fence has served Houston since 1979.

Get a Free Quote Estimate My Fence

Additional Resources

For Houston building permit requirements on commercial fence and gate installations, the Houston Permitting Center is the official source. Chain link gate and hardware specifications follow American Chain Link Fence Manufacturers Association standards.
